Juno Recessed Lighting 6" Retrofit Downlight Trim Module

  • Image 1
Price:
$96.97
SKU:
J6RLG3-27K-6-WWH
Weight:
4.00 LBS
Shipping:
$12.95 (Fixed shipping cost)
Quantity:


Product Description

  Technical Spec     Downloads







Description

Retrofit LED Downlight Trim Module with Black Baffle. Can be installed in dedicated 6" Juno housings with quick connects for full T24 compliance, or can be installed in 6" housings with medium-base socket using supplied adapter. Compatible  with most 6" recessed housings measuring at least 5 1/4" high with an inside diameter between 6" and 6 3/4".

Features & Benefits

  • All-in-one 6" LED Retrofit downlight trim installs into existing 6" incandescent housings with medium base sockets or Juno IC23-LEDT24 and IC23R-LEDT24 quick connect recessed housings
  • May be used in housings completely covered with insulation
  • Selection of interchangeable baffle and cone trim inserts can be changed in the field to customize the look of the product
  • Dimmable with most standard incandescent or electronic low voltage dimmers
  • Designed to provide 50,000 hours of life
  • 5 year limited warranty on LED components.

LED Retrofit Downlight Trim Aluminum housing with white painted flange as standard.
All-in-one design where LED light engine mounts directly to trim.
Quick release slot allows for field changing of trim inserts.
Provided with torsion springs as standard.
Accessory kit available for use in housings that do not have torsion spring retaining brackets.
LED Light Engine LED array integrated to one piece high purity aluminum, thermally conductive housing provides uninterrupted heat transfer to ensure long life of the LED.
Light engine incorporates the latest generation, high lumen output LED array.
LEDs are binned to standards that exceed ENERGY STAR® requirements yielding superior fixture to fixture color uniformity.
2700K, 3000K, 3500K or 4100K color temperature available.
83 CRI typical.
LED Driver Dedicated 120 volt driver.
Power factor > 0.9 at 120V input.
Dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers.
Trim Inserts Choice of baffle or cone inserts in a selection of finishes ship installed in trim.
Interchangeable design allows the inserts to be changed in the field.
All inserts available to order as an accessory.
Optical System Computer-optimized reflector design with high reflectance white finish coupled with a high transmission diffusing lens conceals the LEDs.
Efficient system that can produce over 600 lumens while using less than 11W (Nominal input wattage under stable operating conditions.)
Electrical Connections Trim features quick connect plug installed as standard for installation into IC23-LEDT24 and IC23R-LEDT24 housings with mating connector.
Trim ships with a medium base socket adapter whip for installation into 6" incandescent housings with medium base sockets.
Life Rated for 50,000 hours at 70% lumen maintenance.
Labels ENERGY STAR® Qualified to luminaires V1.1 requirements.
Certified to the high efficiency requirements of California T24-2008.
Suitable for wet locations.
Union made.
UL and cUL classified for use with 6" incandescent medium based housings and Juno IC23-LEDT24 or IC23R-LEDT24.
Compatible Housings The J6RLG3 retrofit module is compatible with most 6" recessed housings measuring at least  5-1/4" high with an inside diameter between 6" and 6-3/4".
Removal of the housing socket plate or socket mounting bracket may be required in order for the trim to fit properly. If housing does not have torsion spring brackets, the V6RL-TRB accessory is  required.
Compatible housings include, but not limited to: Juno housings: IC2 and TC2 Series, IC22 Series, IC23 Series, IC21 Series

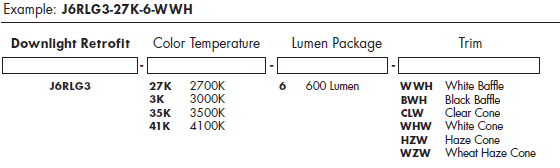

Ordering Information: Retrofit and accessories each ordered separately
